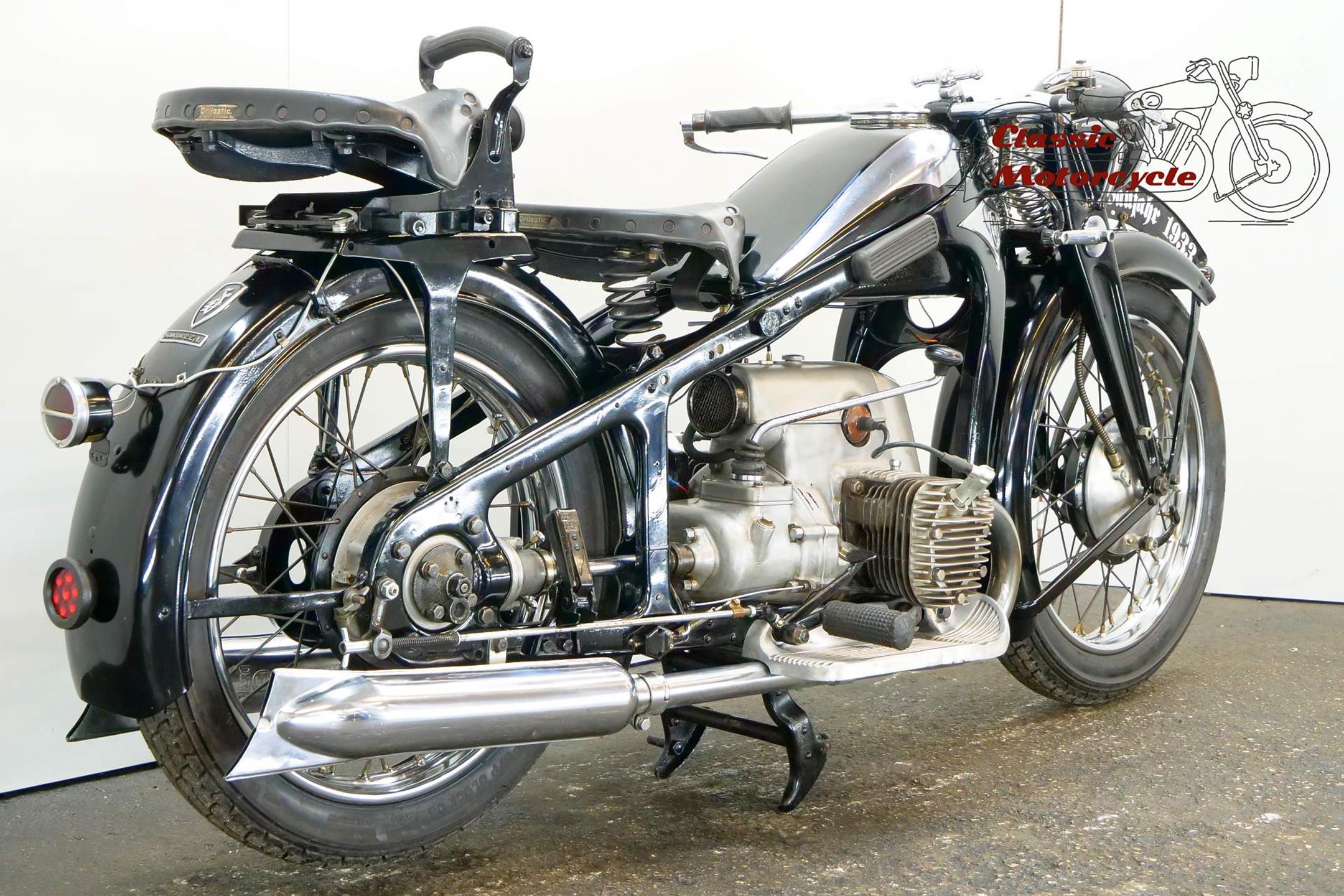

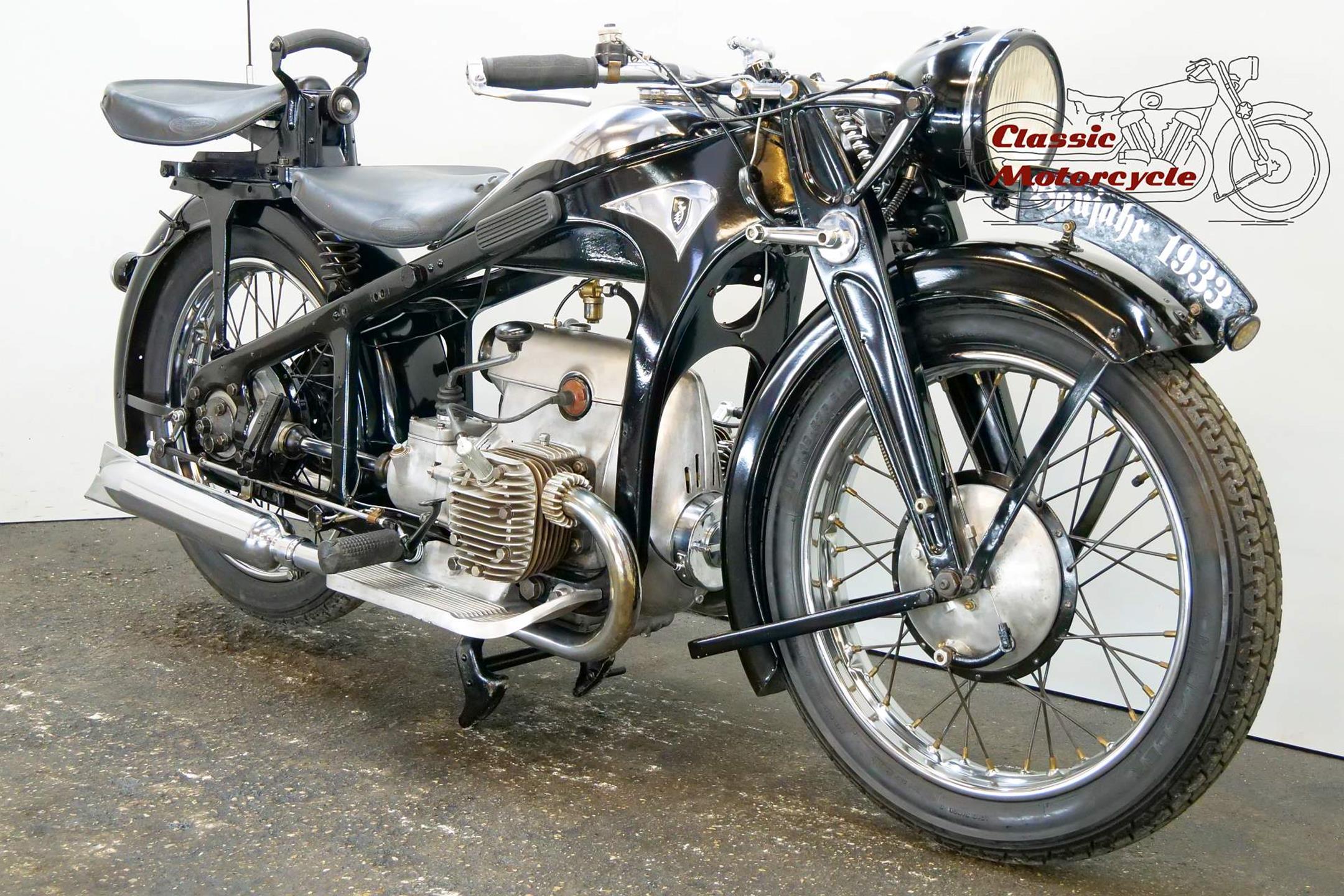

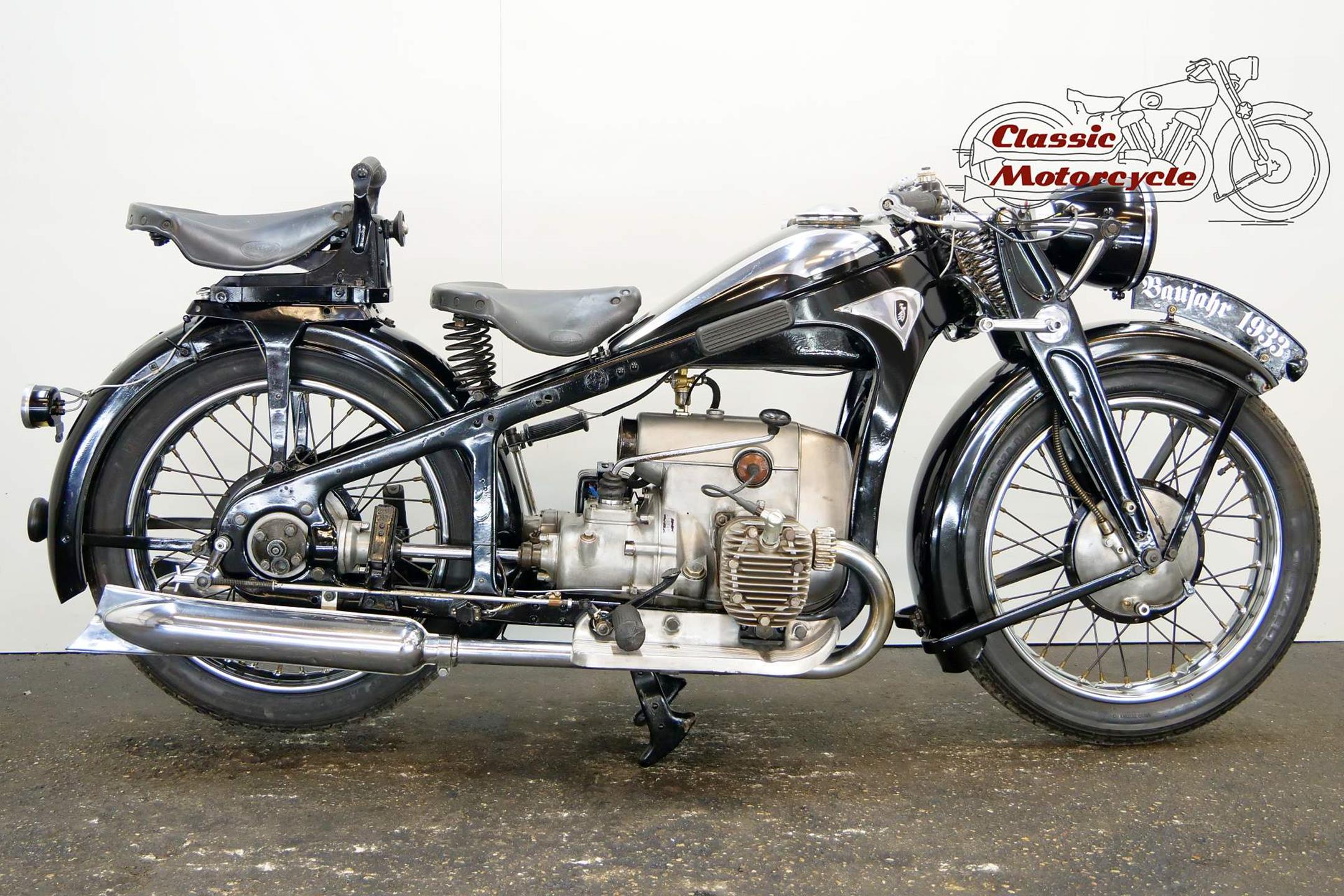

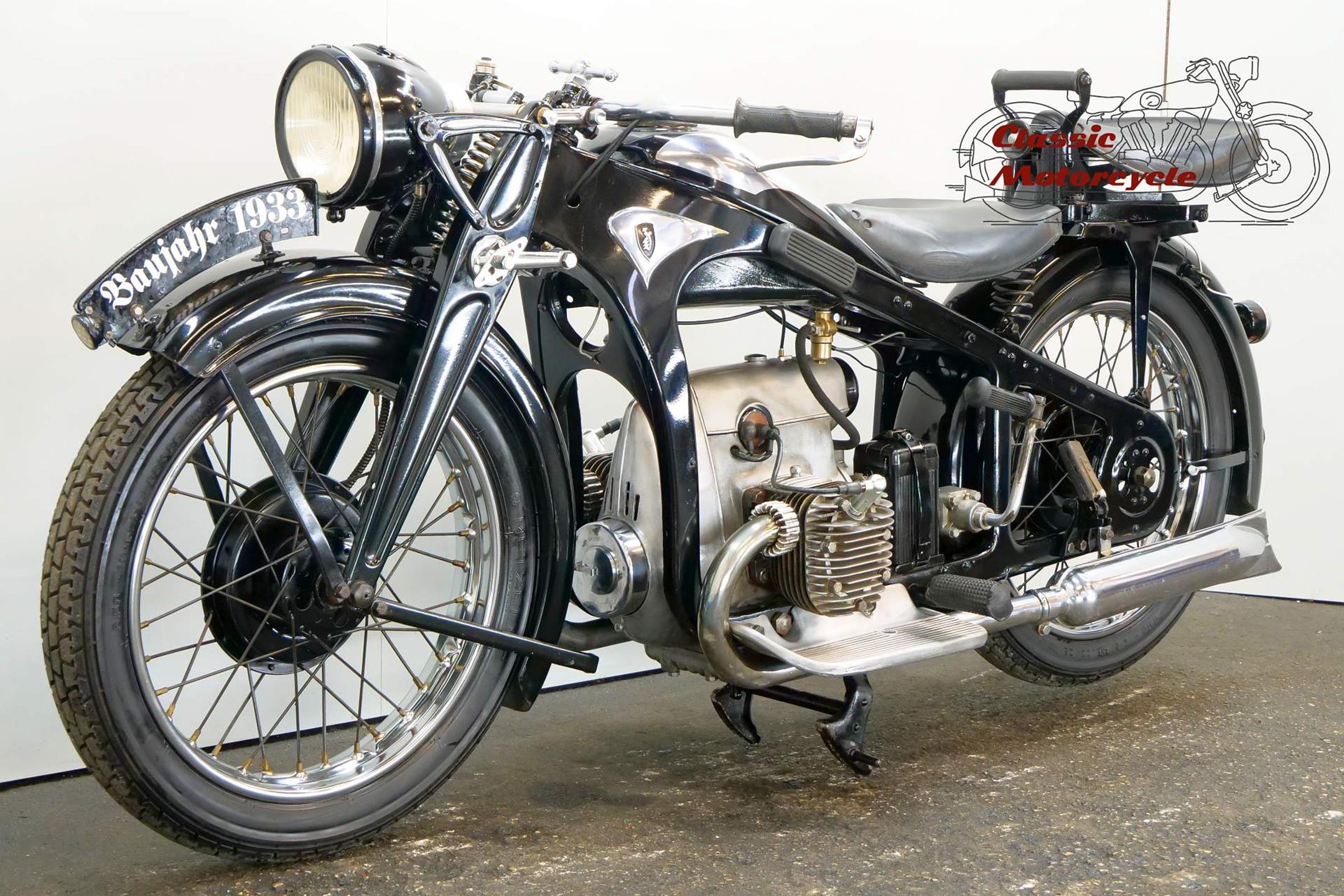

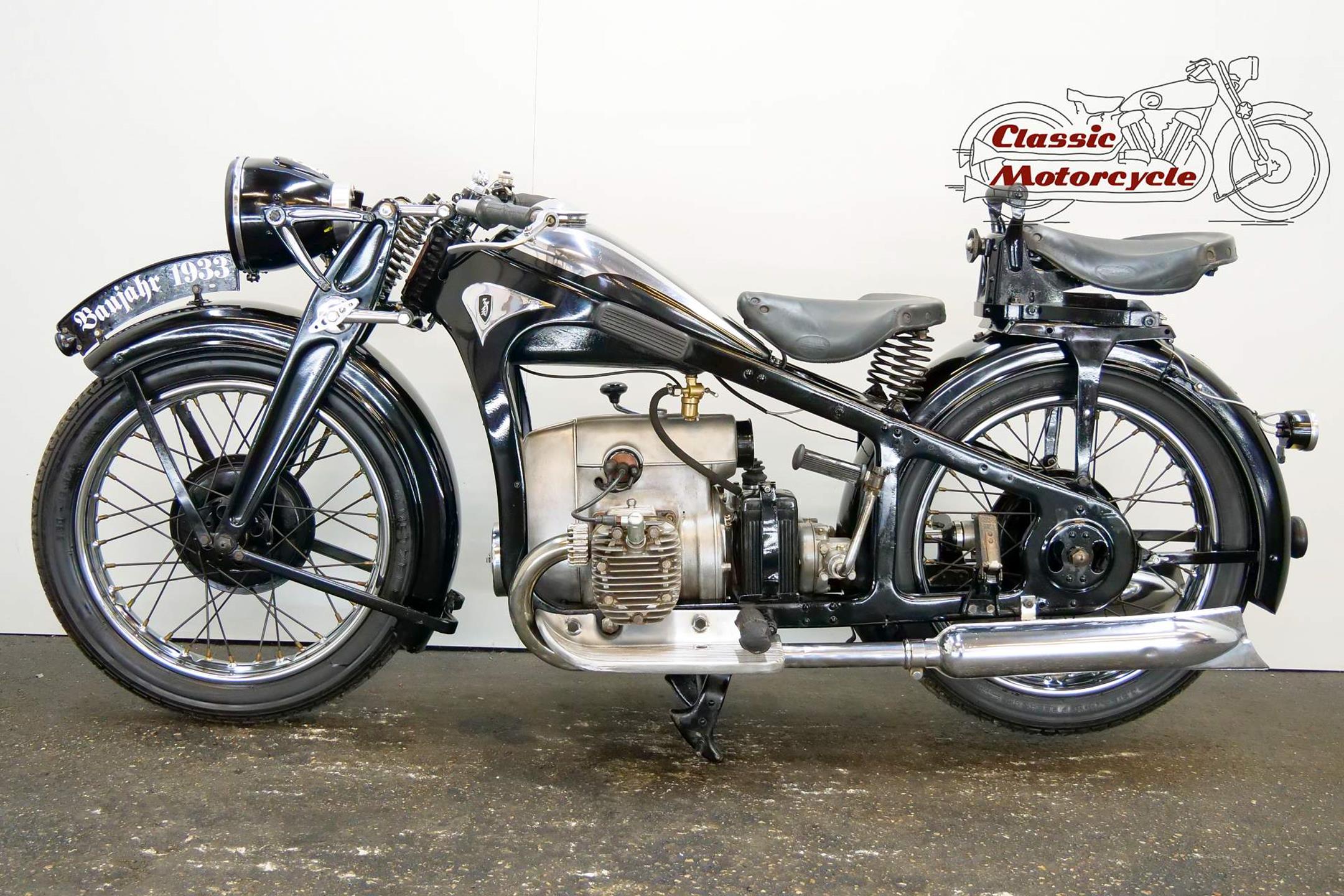

Zündapp K500 1933 498cc 2 cyl sv


Zündapp K500 1933 498cc 2 cyl sv

Manufacturer: Zündapp

Model: K500

Year: 1933
Displacement: 498 cc

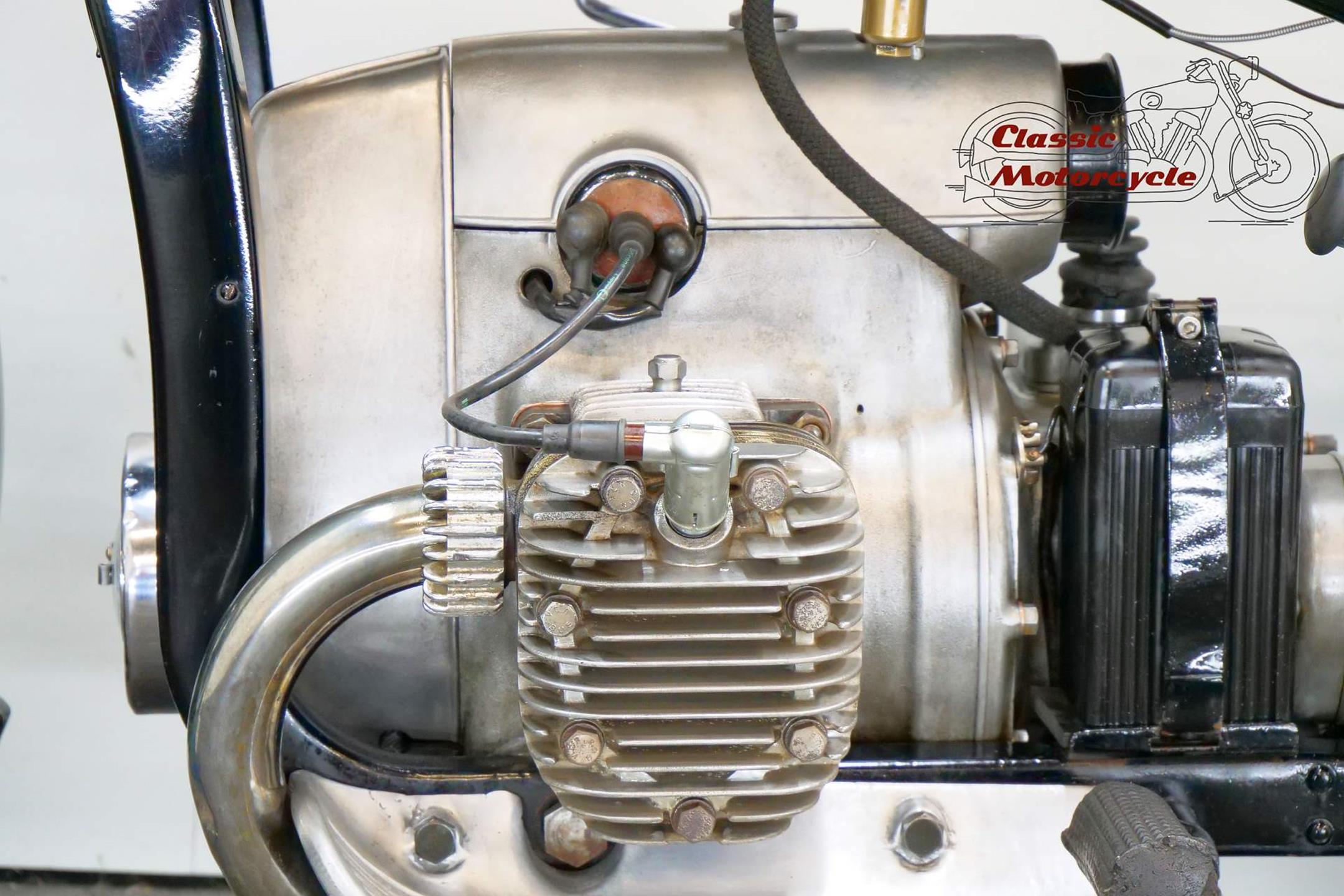

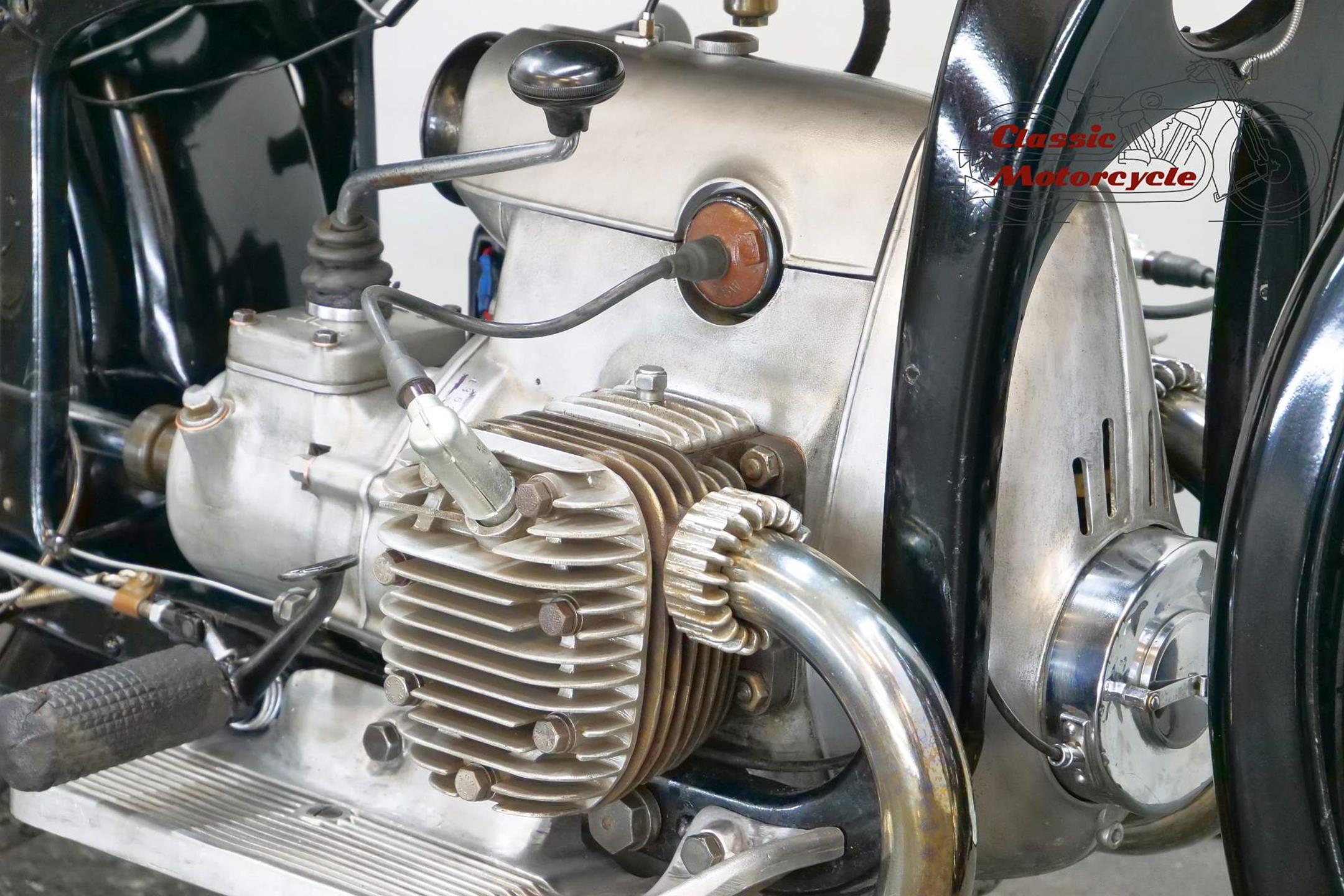

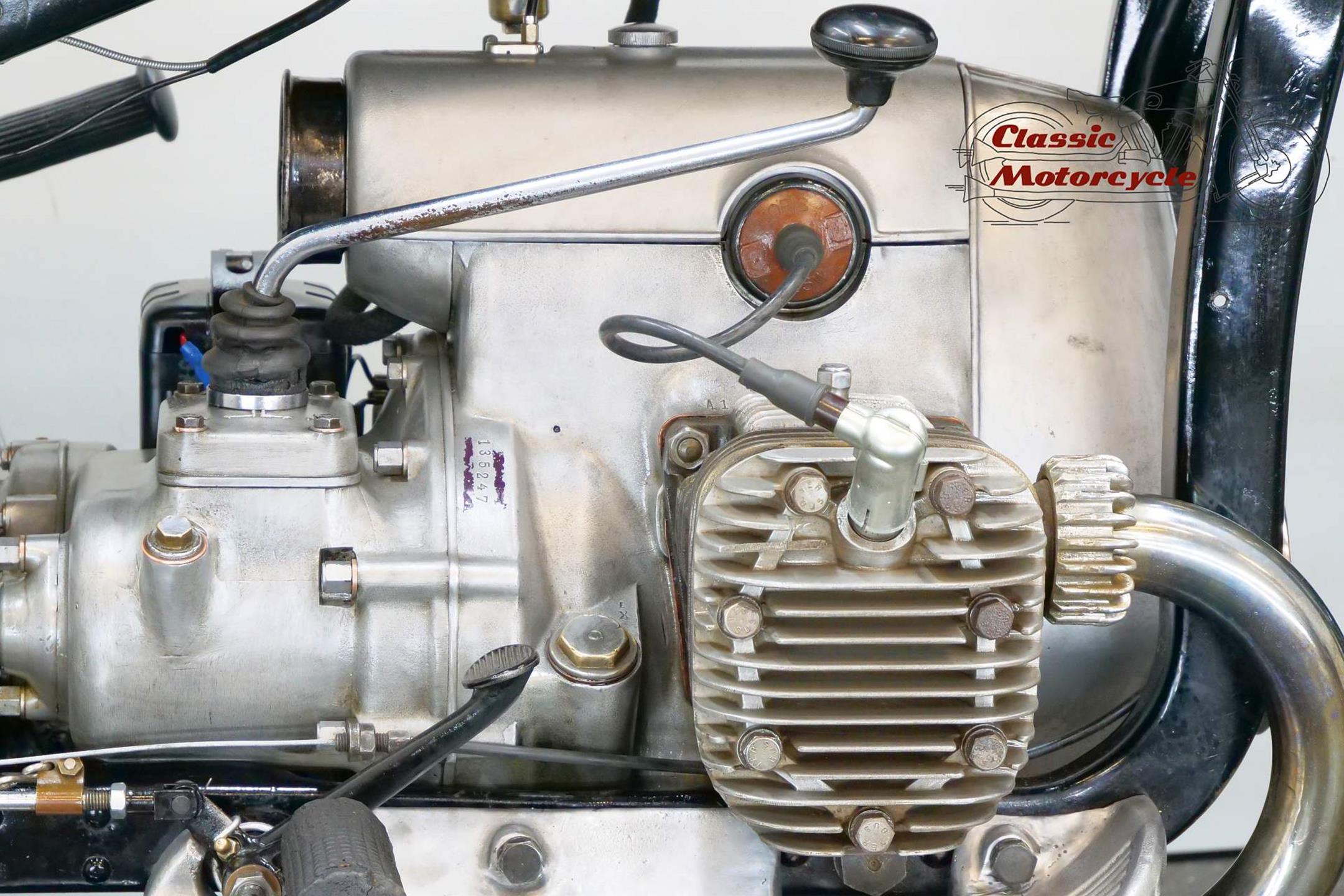

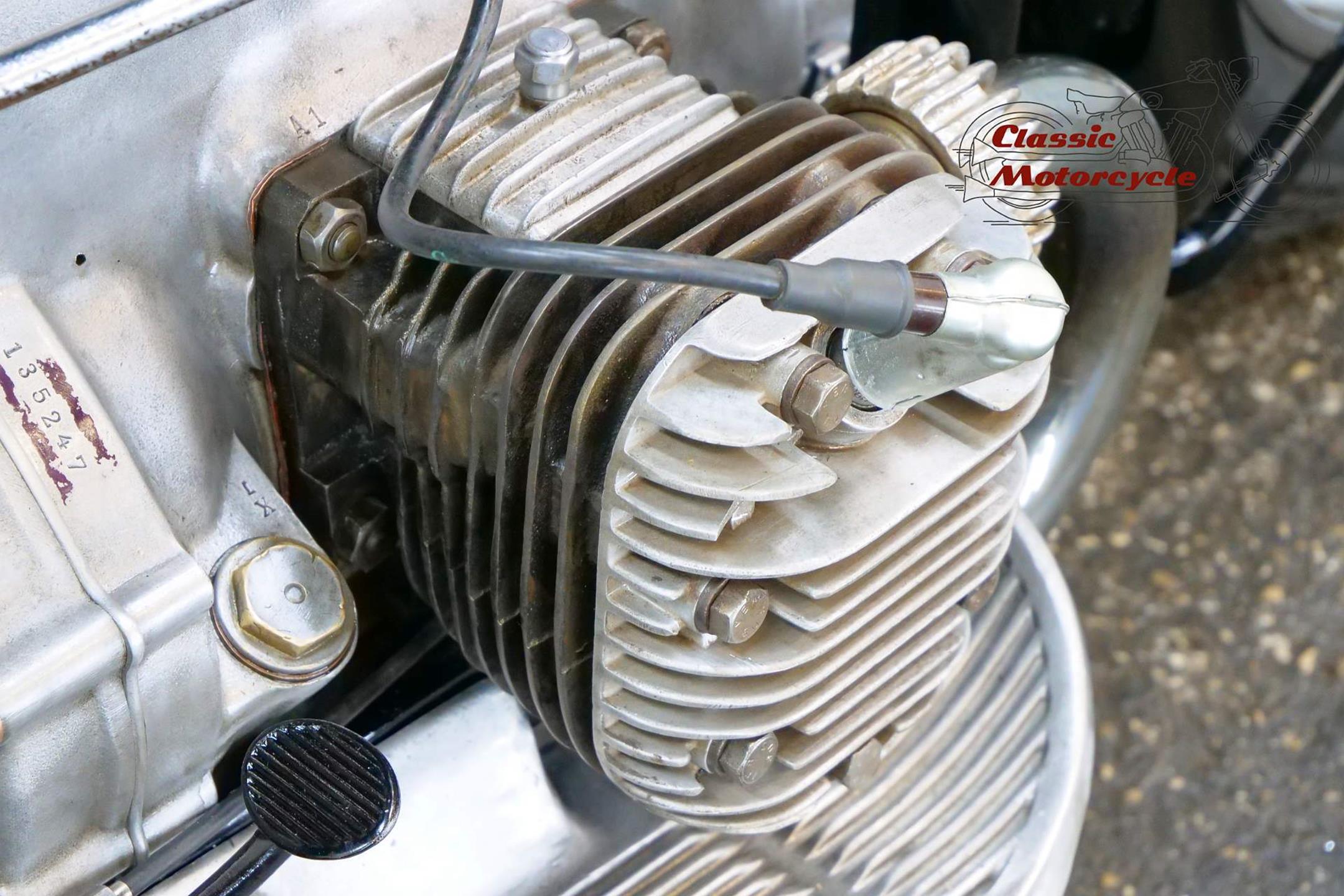

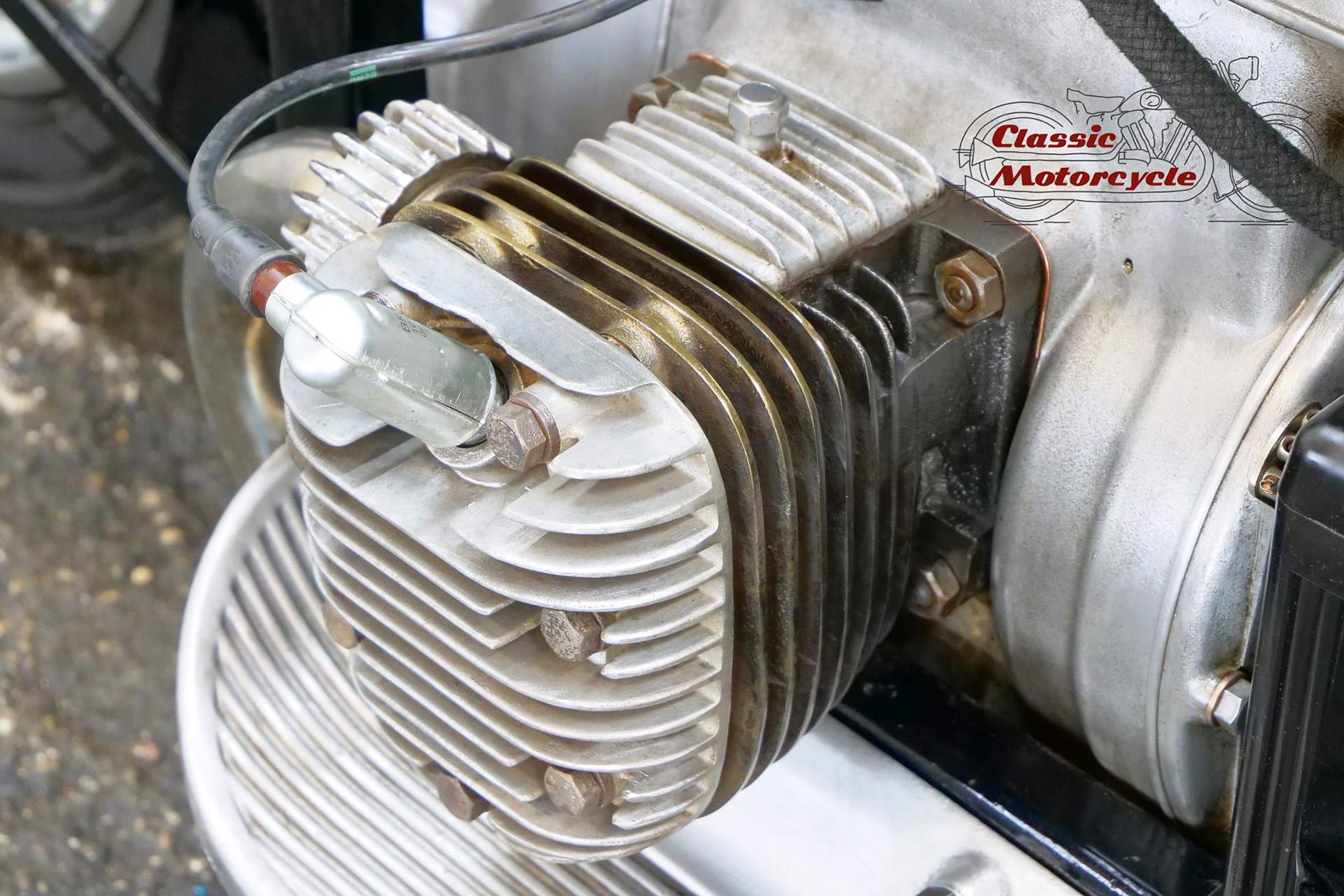

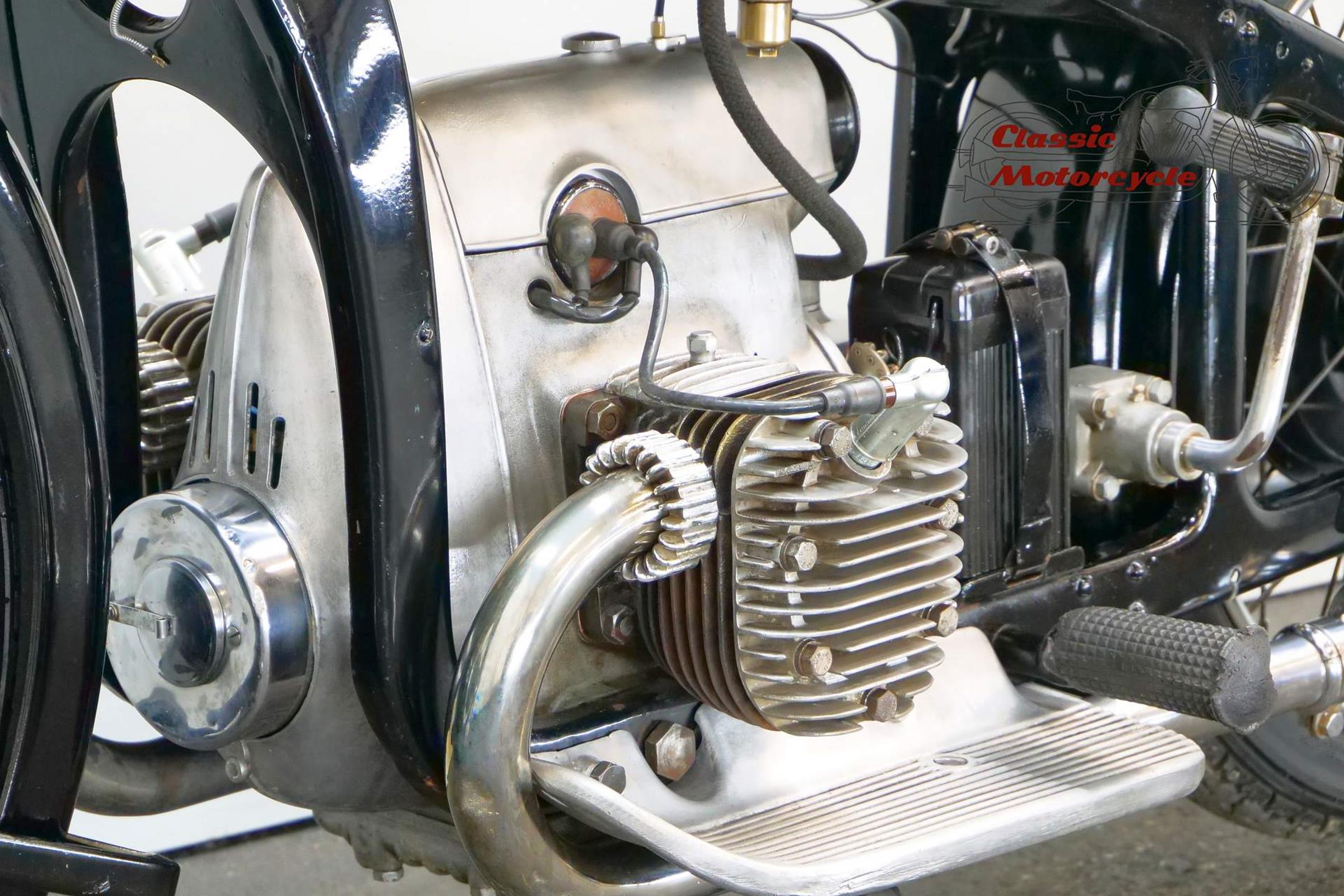

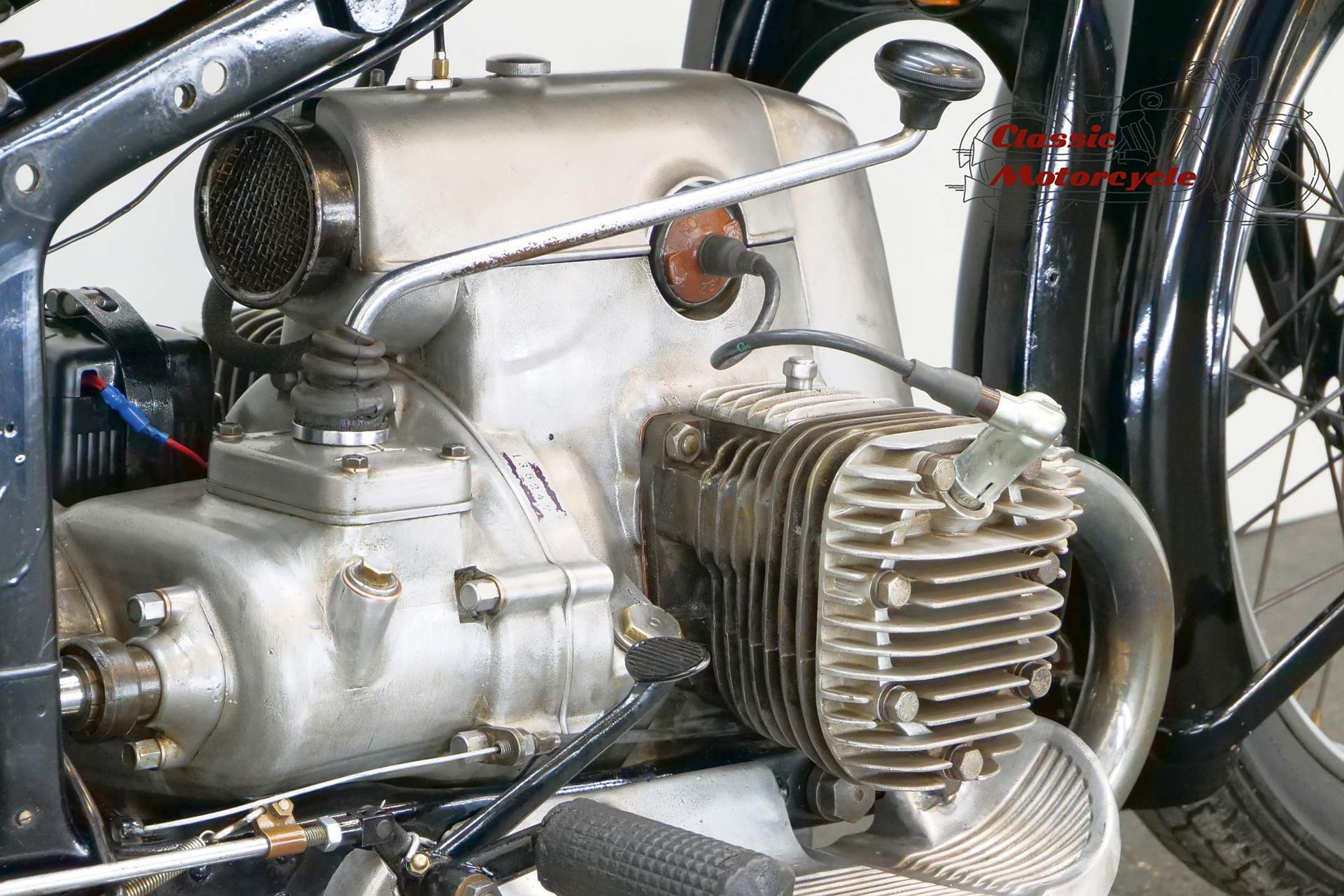

Cylinder: 2 - transverse
Engine type: 4-stroke / sv
Bore / Stroke: 69 x 66 mm
Power: 16hp @ 4.800 rpm
Top Speed: 105 km/h
Production years: 1933 - 1940

Frame number: 135247
Engine number: 135247

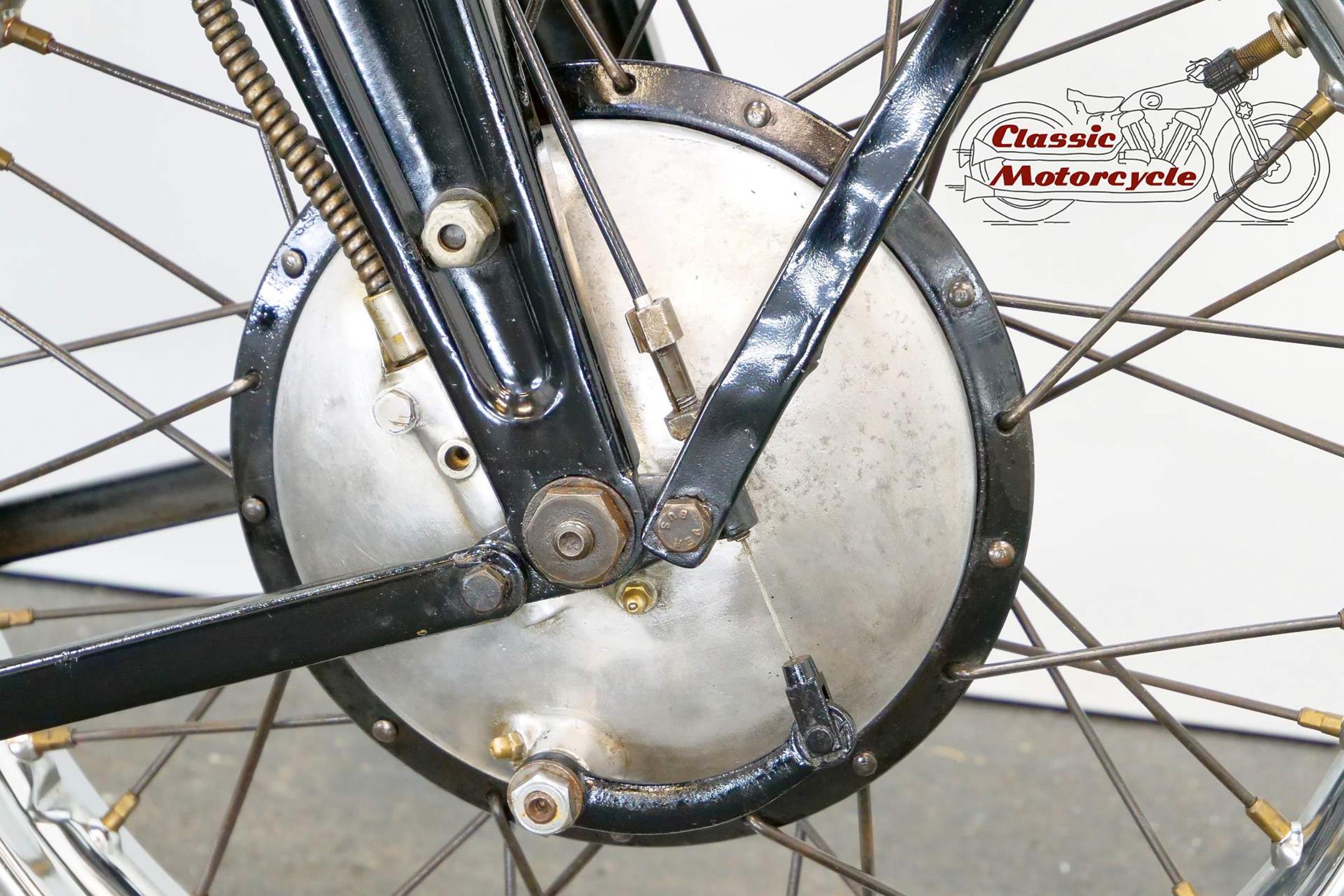

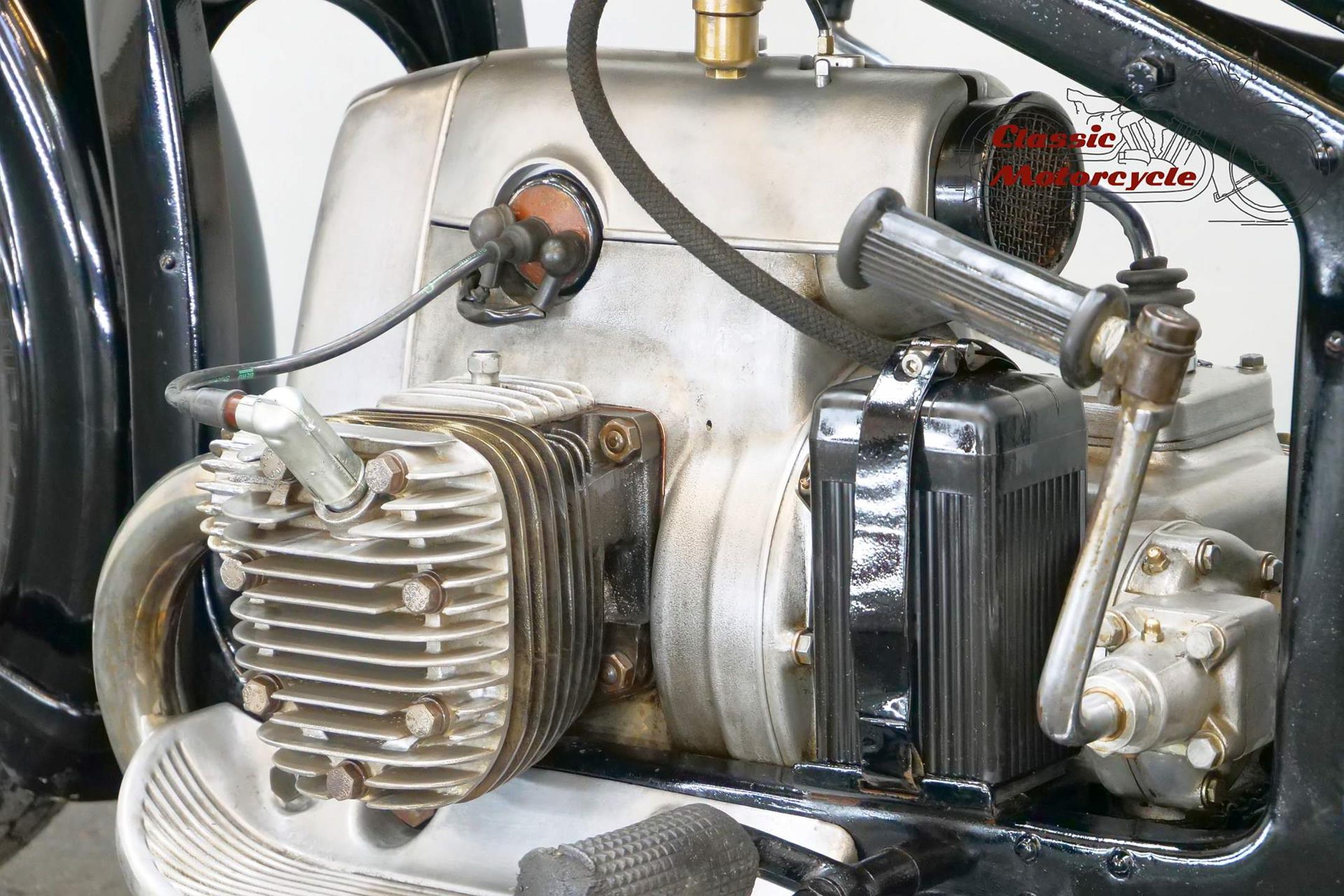

Founded at the height of WWI to manufacture armaments, Zündapp found a new role post-war as a producer of motorcycles under the direction of new owner, Dr Fritz Neumeyer, building its first machine, a Levis-powered two-stroke, in 1921. The firm began making its own engines in 1924, selling more than 10,000 machines that year, and at the Berlin Motor Show in 1933 introduced the first of the horizontally opposed, four-stroke twins that it is best remembered for. These formed part of an extensive and diverse range of models, all but the smallest two-stroke being designated by the letter 'K' (for kardan, meaning 'shaft'). Among the models premiered were the K400 and K500 sidevalve twins, both of which employed designer Richard Küchen's unconventional all-chain four-speed 'gearbox' and, as the designation suggests, shaft final drive. Introduced at the same time was another Küchen design: a horizontally opposed four made in 598cc (K600) and 798cc (K800) capacities. Common to all the larger models and eminently suited to withstanding the stresses and strains imposed by travel on unmade roads, the robust frame and girder forks were made of pressed steel, an advanced feature at the time. The new Zündapp range was an enormous success, and in September 1933 the firm produced its 100,000th machine, quite an achievement after little more than a decade as a motorcycle manufacturer.

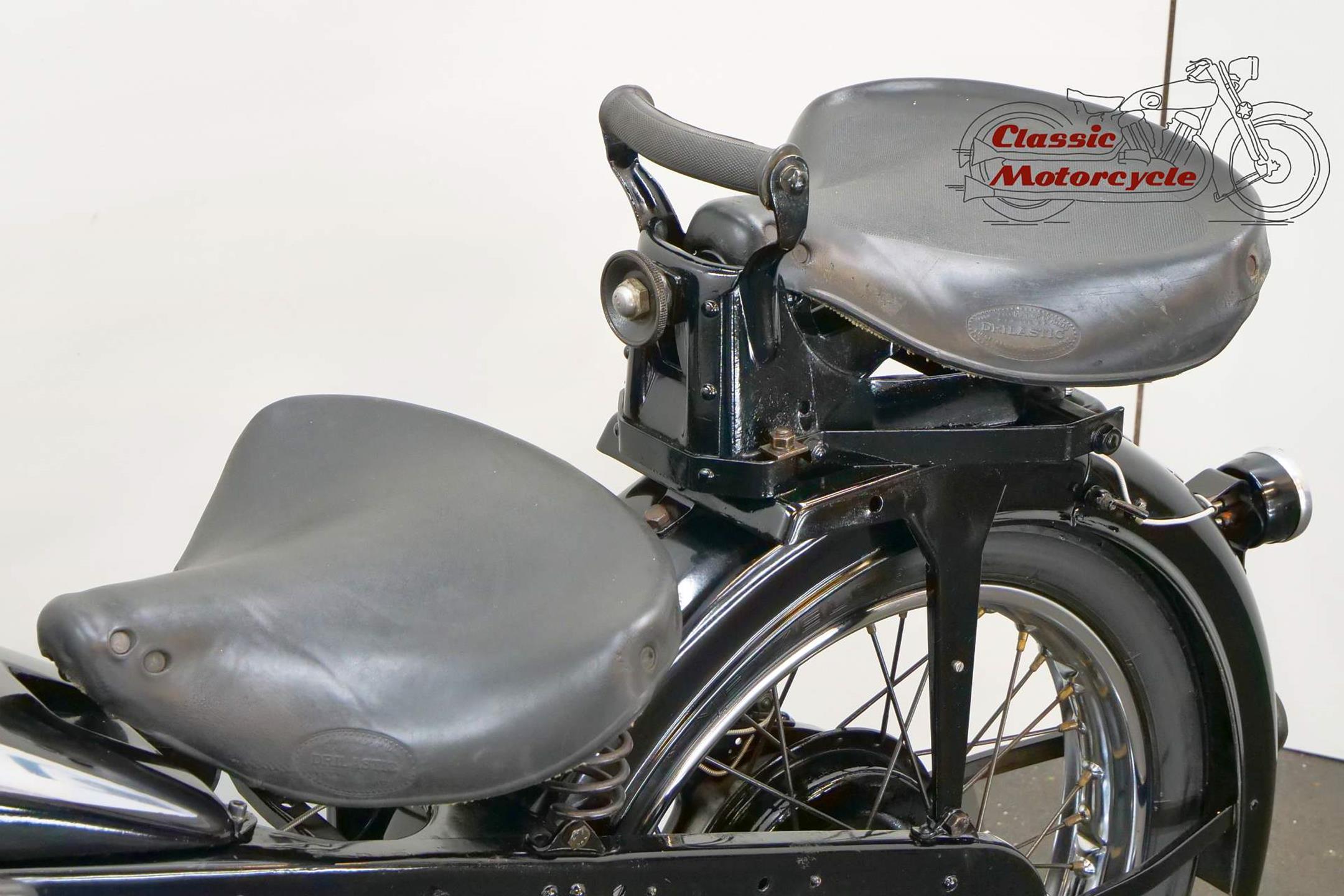

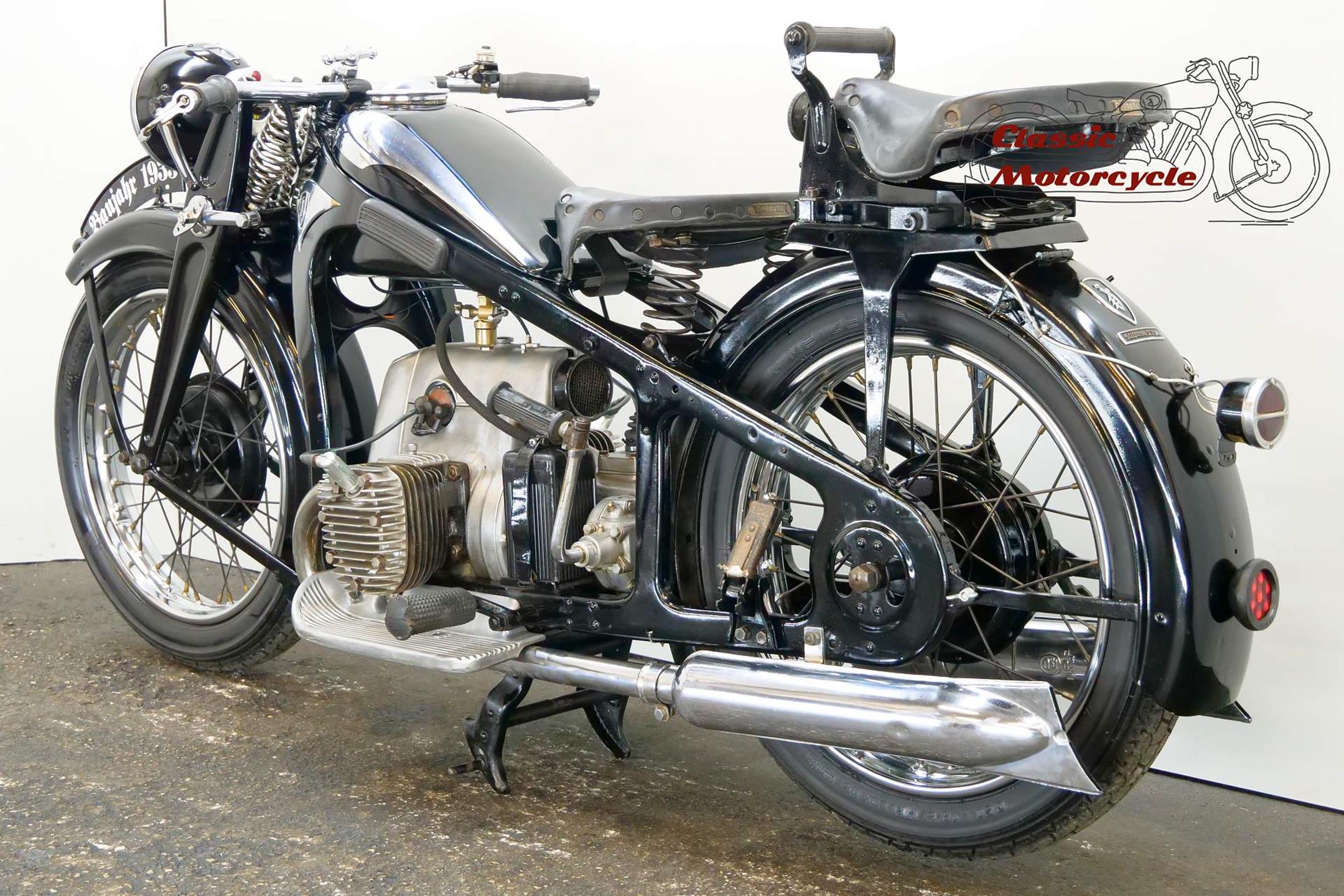

This Zündapp is the result of German engineering. It was restored years ago and is equipped with a rare Veigel speedometer and a pillion seat. It comes with the original offer from Zündapp 1933 and the original invoice from 1934. This bike has been sold from the dealer Georg Weith Thüringen, Germany to the customer Walter Becker Näherstille, Germany.
