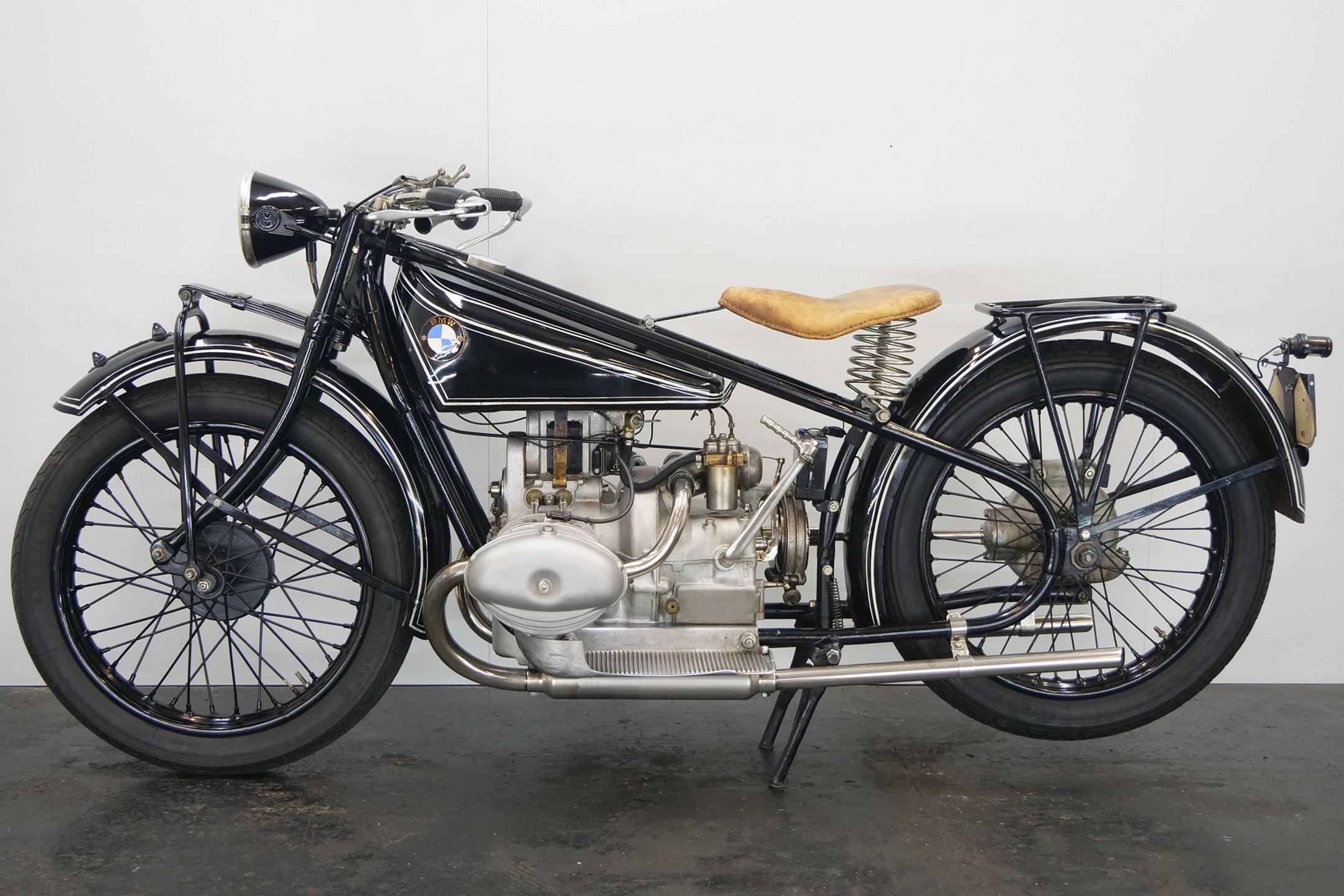

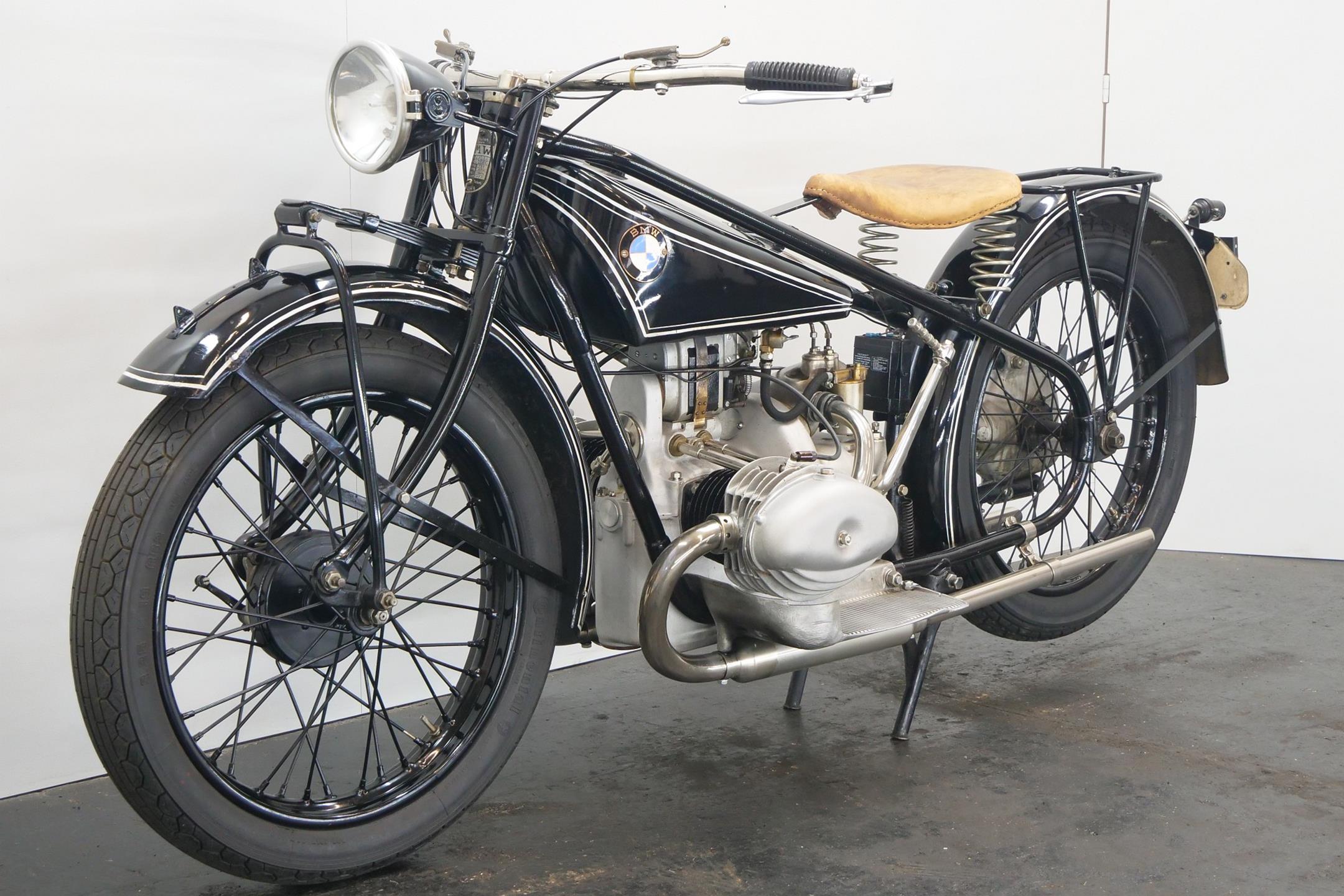

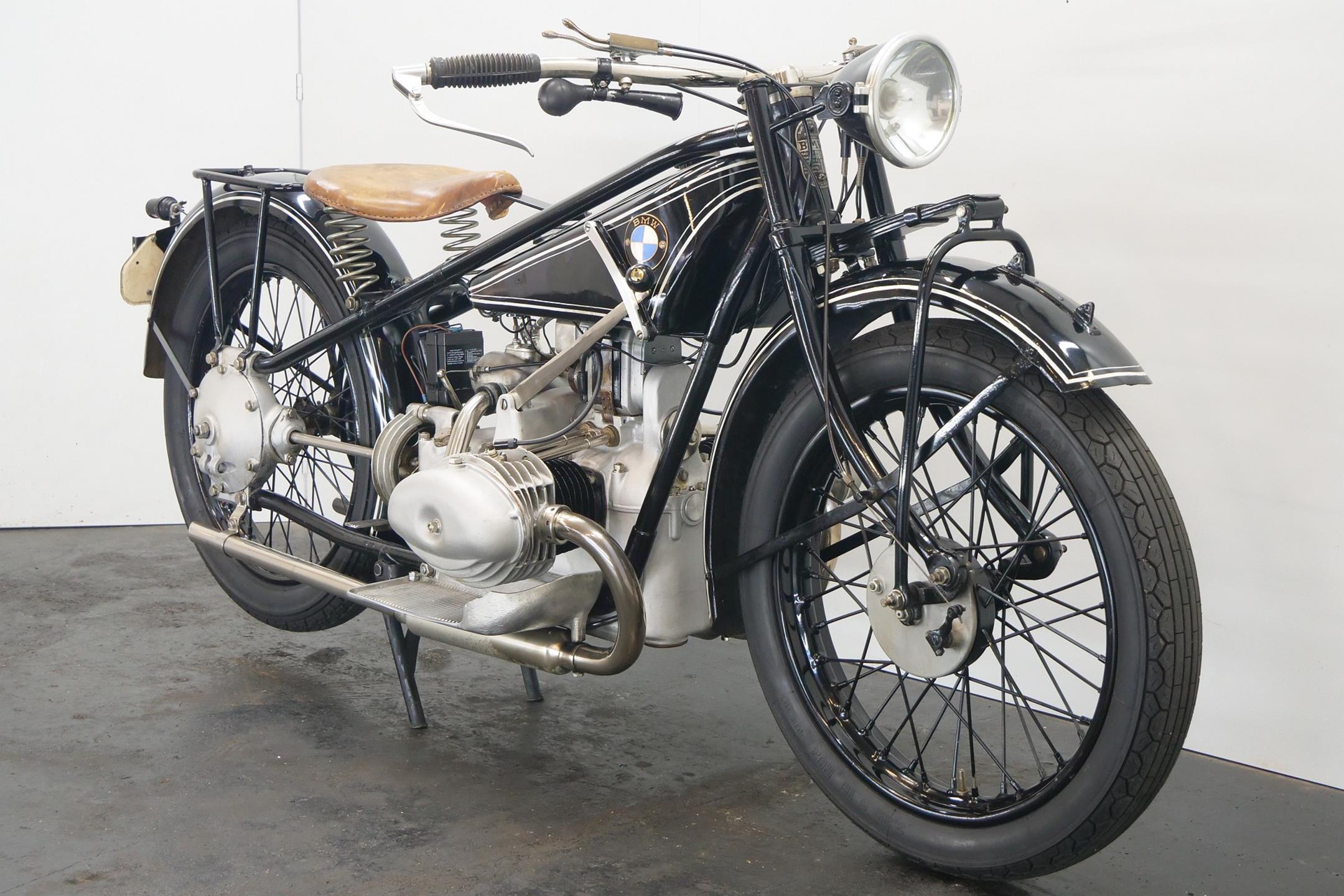

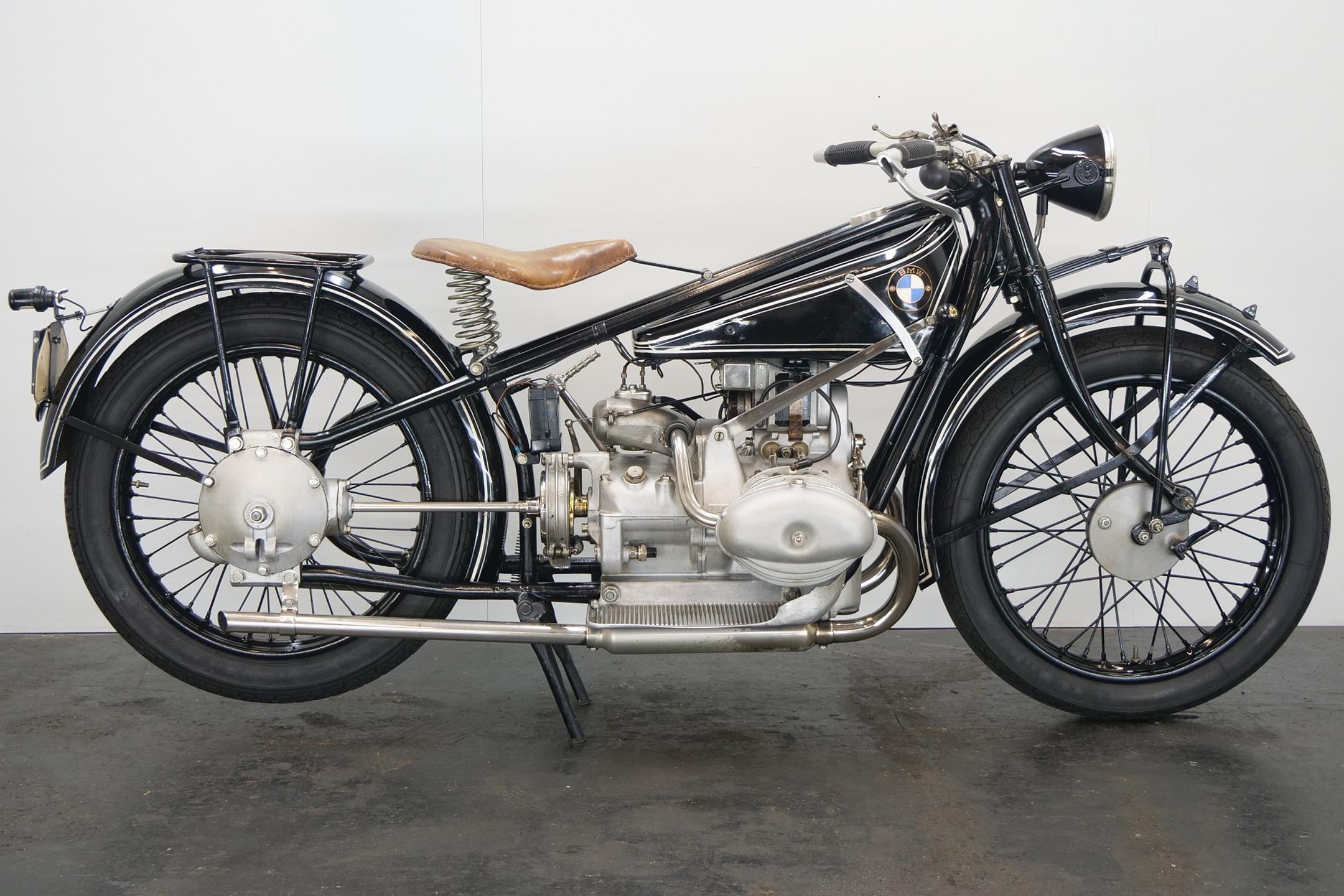

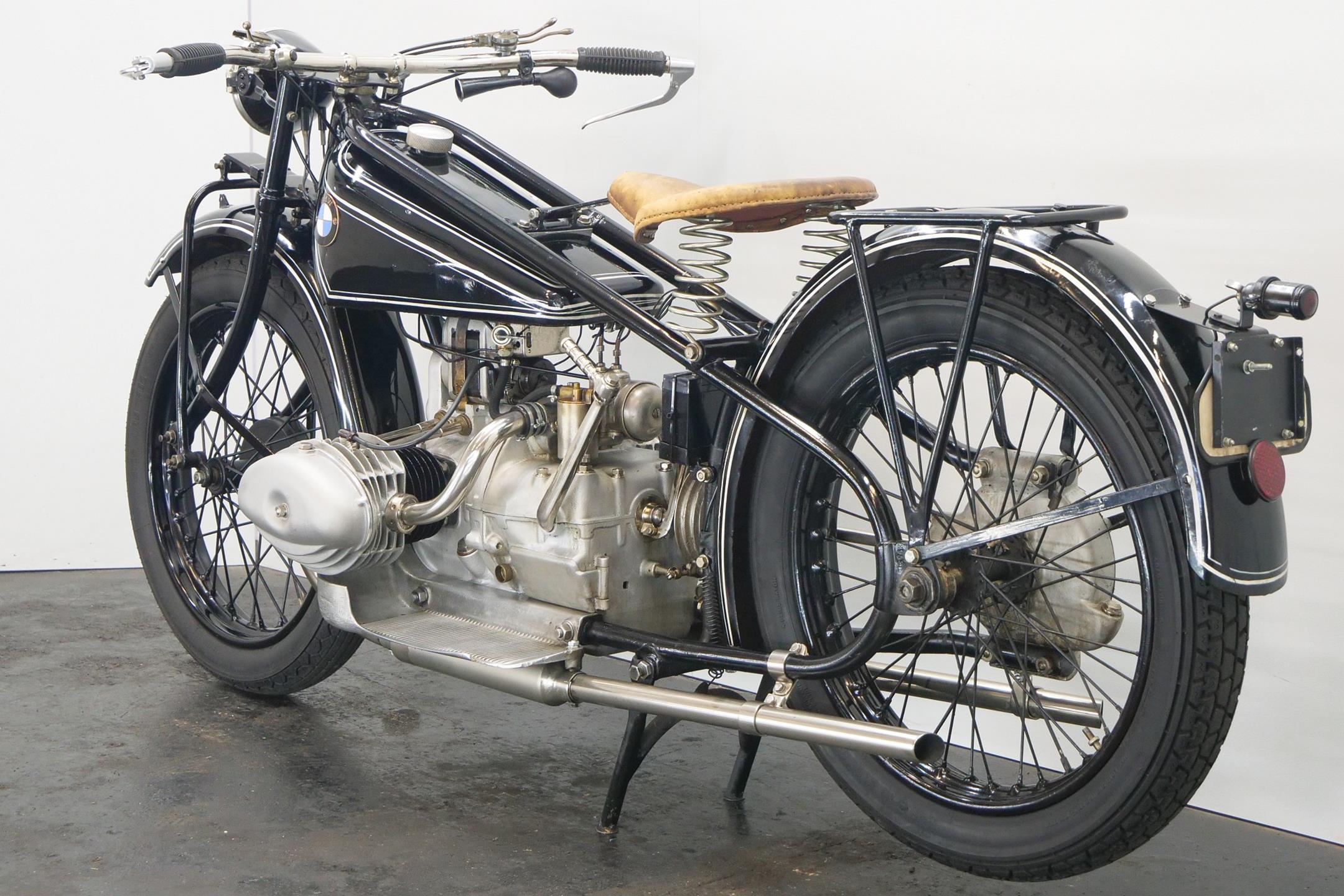

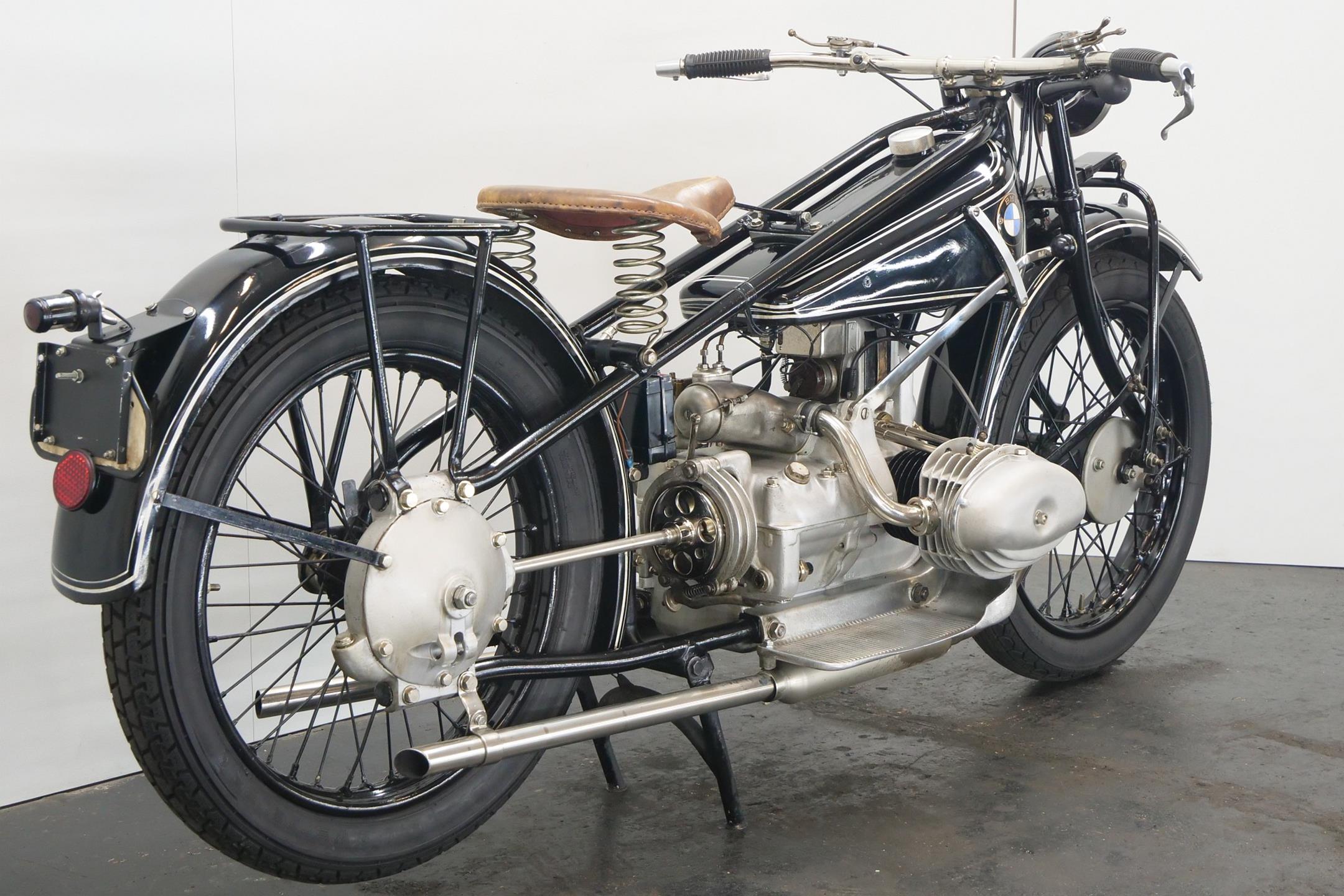

BMW R47 1928 500cc 2 cyl ohv


BMW R47 1928 500cc 2 cyl ohv

Manufacturer: BMW

Model: R47

Year: 1928
Displacement: 494 cc
Cylinder: 2 - transverse

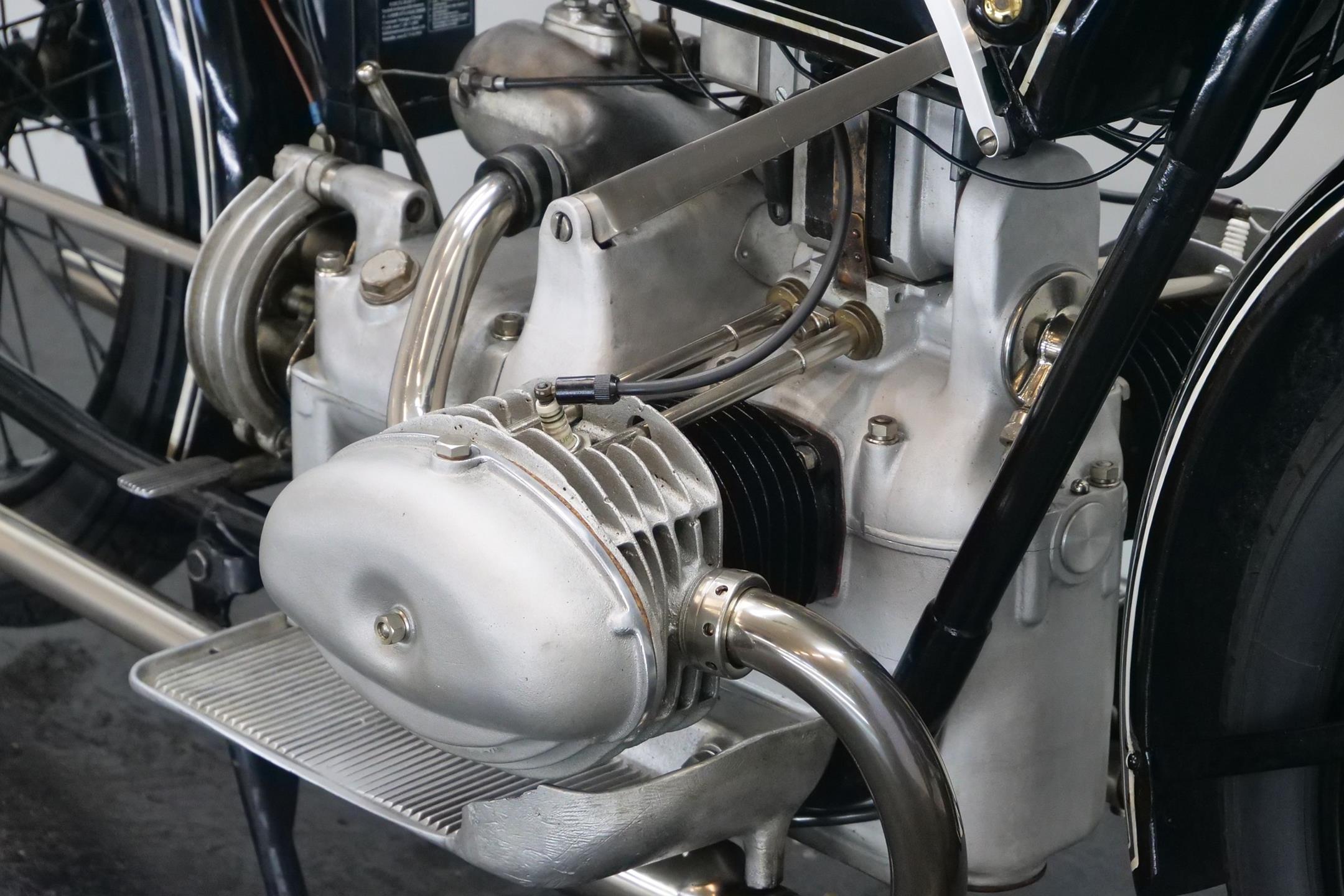

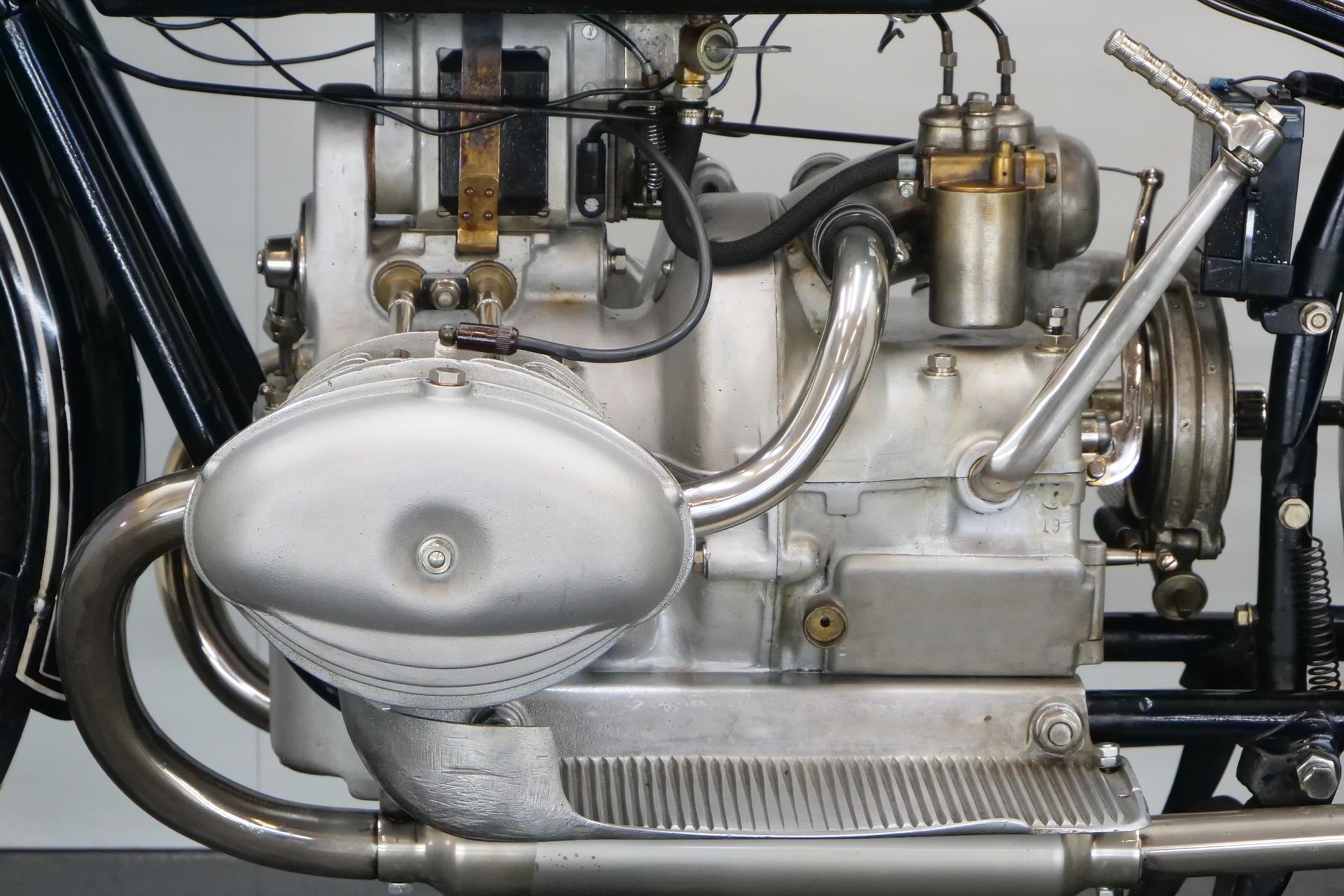

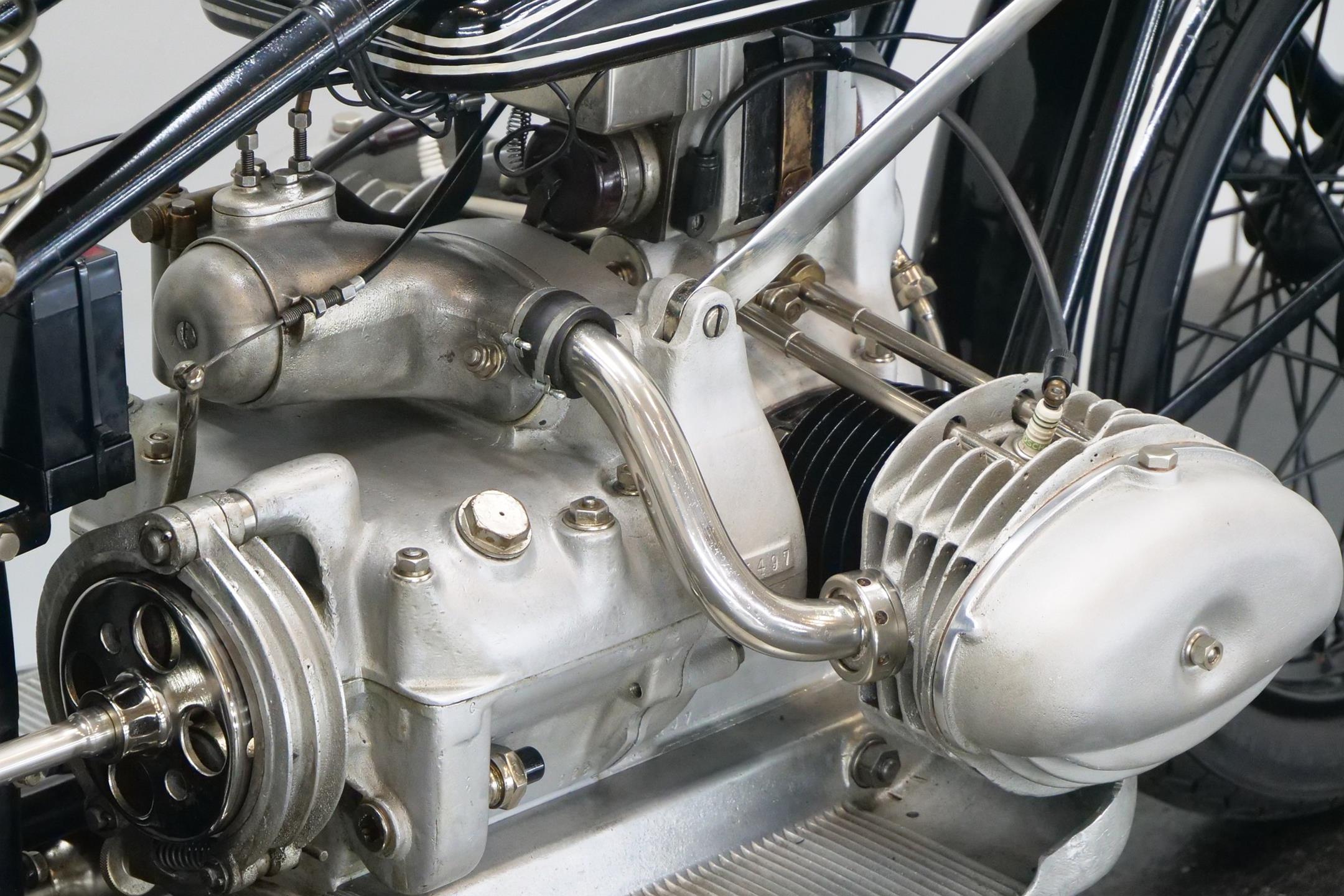

Engine type: 4-stroke / ohv
Bore / Stroke: 68 x 68 mm
Power: 18hp @ 4.000 rpm
Weight: 130 kg
Top Speed: 110 km/h

Frame number: 29588
Engine number: 35497

Launched in 1923, the first motorcycle to be sold as a BMW - the R32 - featured a 494cc, twin-cylinder, sidevalve engine having horizontally opposed cylinders, and this 'flat-twin' layout would forever be associated with the marque. The marque's first sports machine, the R37, appeared in 1924. The R37 boasted an overhead-valve engine producing almost double the R32's power output - 16hp, good enough for a top speed of more than 110kmh - but was produced for little more than a year (only 175 being made) before being replaced by the improved R47, the latter featuring increased power (18hp) and a driveshaft-mounted rear brake in place of the R37's block-and-pulley type. The R47's cycle parts were typically BMW, comprising a duplex loop frame and leaf-sprung trailing-link front fork. Top speed was in the region of 110kmh. R47 production lasted for just two years, 1.720 machines being sold.

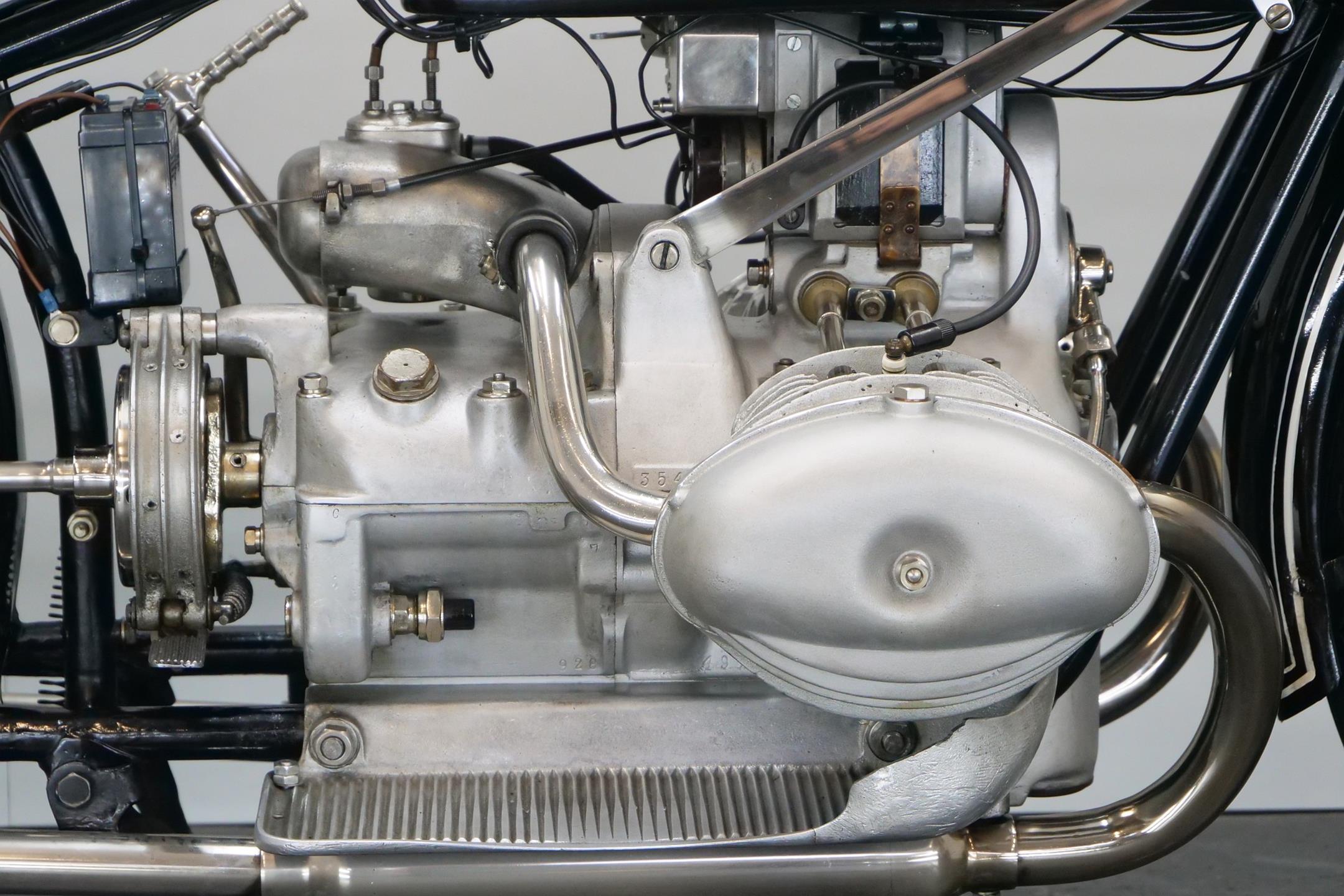

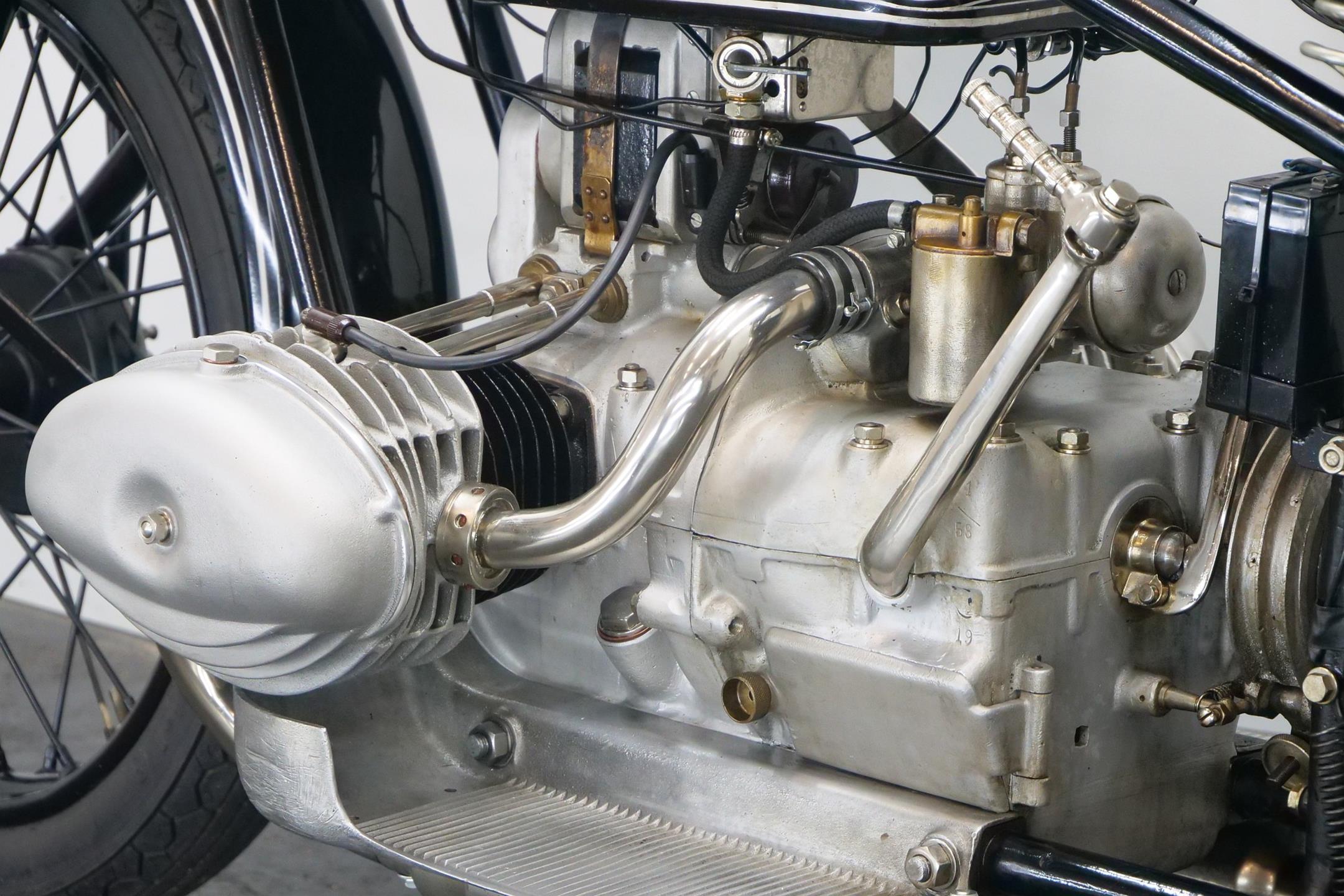

This rare ohv BMW is one of BMW’s most collectible motorcycles. The frame is from the heavier model R52 which has more stiffness. At some point in the past the engine has been replaced with a more powerful R47 sport engine. This R47 was in long term ownership last 34 years and is in running condition.
